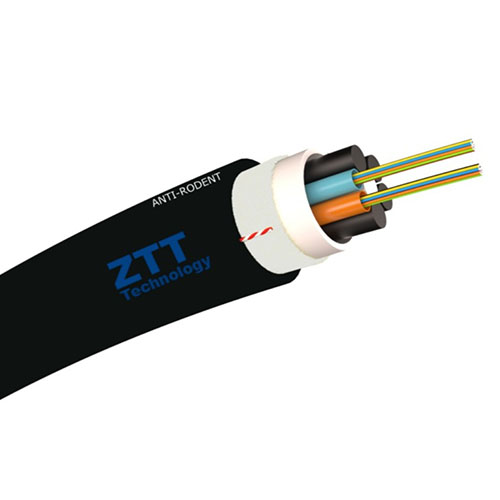

ZTT 48F DUCT Anti-Rodent, G.652D, 2.7kN

Description:

FIBER OPTIC DUCT ANTI-RODENT CABLE ZTT 48F, MULTITUBE (12F/Tube), G652D, 2.7 kN

Technical data:

•  Optical fibers G.652D
•  Number of fibers: 48
•  Number of fibers in tube: 12
•  Number of tubes/fillers: 4/2
•  Cable diameter: 9 mm
•  Minimum bending radius: 90 mm
•  Outer jacket: HDPE – black
•  Weight: 73 kg/km
•  Operating temperature: – 40[°C] to 70[°C]
•  Installation temperature: – 30[°C] to 60[°C]
•  Tensile strength: 2.7 kN
•  Crush resistance: 1.5 kN/10 cm

Features:

•  Two-layered HDPE jacket (black)
•  Anti-Rodent protection
•  Multitube structure
•  UV, water resistant
•  Resistance to chemical agents
•  Resistance to substances occuring in duct systems
•  Reinforced by a thick layer of glass fibers
•  Reinforced by central FRP rod
•  Hydrophobic gel in tubes
•  Ripcords (x2)
